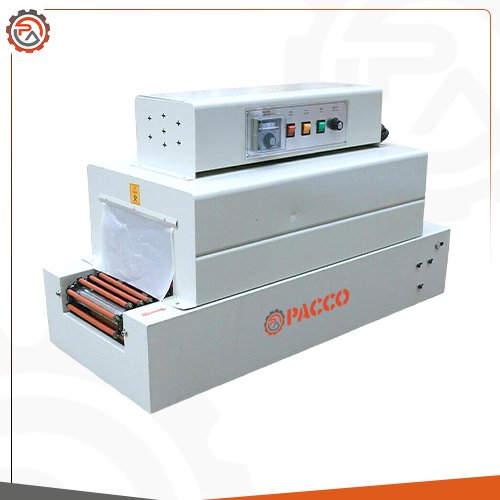

Shrink Wrapping Machine BS 260 (Shrink Tunnel Series)

Shrink Wrapping Machine BS 260 (Shrink Tunnel Series)
Shrink Wrapping Machine BS 260 (Shrink Tunnel Series)
Shrink Wrapping Machine BS 260 (Shrink Tunnel Series)

Shrink Wrapping Machine BS 260 (Shrink Tunnel Series)

Shrink Wrapping Machine BS 260 is suitable for shrinking small products, and has the advantages of small size, small footprint, economical and so on. It is suitable for far-infrared heat shrinkable thin films such as POF and PVC. The thickness of the shrink film should be in the range of 0.01-0.04 mm. Quartz heating tubes are located at the top, bottom and sides of the shrink tunnel, the temperature of the shrink chamber and the speed of the conveyor belt are adjustable.

Features

  • Efficient Heat Shrinking: Provides uniform heat distribution, ensuring even and consistent shrink wrapping for a professional finish on various products.
  • Adjustable Temperature and Speed: Features adjustable temperature and conveyor speed settings to accommodate different packaging materials and sizes.
  • Energy Efficient: Optimized heating elements for reduced power consumption, making it a cost-effective solution for packaging.
  • Suitable for Various Packaging Types: Compatible with POF and PVC. providing versatility for different packaging needs.
Get Quote

Specification

Model: BS 260
Power: 4 Kw
Voltage: 220 V / 50 HZ-1 Ph
Tunnel Size (L x W x H) 750 x 250 x 150
Sealing Speed 0-10 M/Min
Conveyor Load 5-8 Kg
Shrink Material Film PVC/POF
External Machine Dimension (W x H x L) 1000 × 460 × 590 mm
Machine Weight 40 Kg
